Téléphone d'urgence de combiné de vandale de PETITE GORGÉE de SRI anti fixé au mur

Informations de base
Lieu d'origine: Shenzhen, Guangdong, Chine
Nom de marque: J&R
Certification: CE, FCC, RoSH, ISO9001
Numéro de modèle: JR202-FK
Quantité de commande min: 1
Prix: US$119 - US$250
Détails d'emballage: Coton de perle, carton
Délai de livraison: 3-5 jours ouvrables après paiement
Conditions de paiement: L/C, T/T, Western Union, Paypal
Capacité d'approvisionnement: 3000 ensembles par mois
Détail Infomation
Matériel: Acier inoxydable en acier ou laminé à froid Couleur: Gris, jaune, rouge ou personnalisation
Protection d'entrée: IP55-IP65 Combiné: Matériel d'ABS avec la corde blindée
Taille: 247 *130 *132 (millimètres) Actionné: ligne téléphonique actionnée ou DC12V
Version: Analogue/SIP/GSM Garantie: 2 ans
Surligner:

Anti téléphone d'urgence de combiné de vandale

,

Le SRI a fixé le téléphone d'urgence à la main

,

Téléphone à l'épreuve du vandalisme fixé au mur


Description de produit




Detailed Presentation

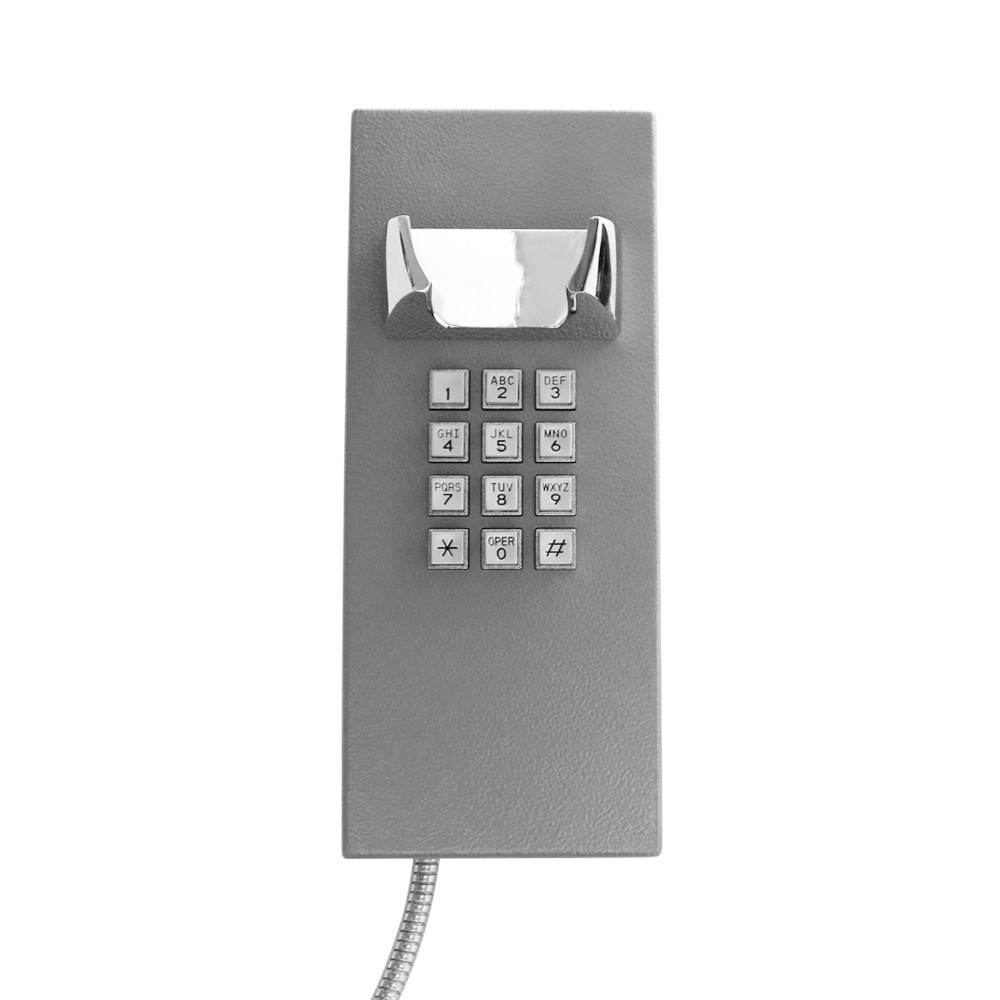

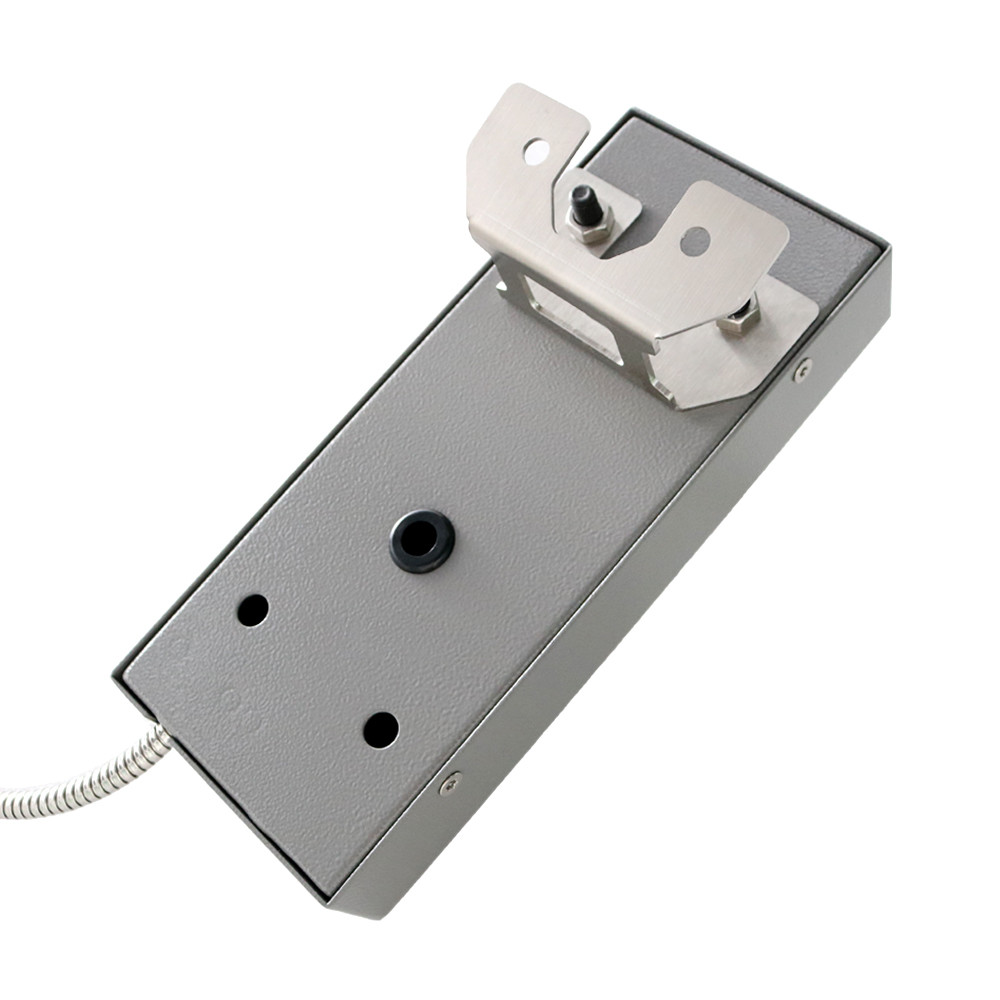

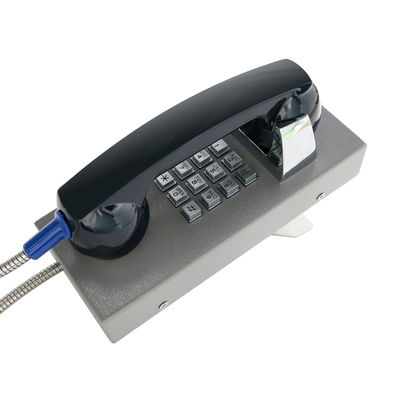

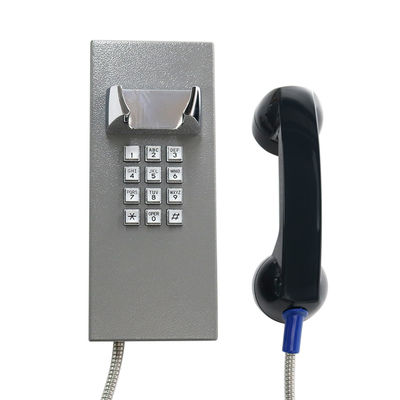

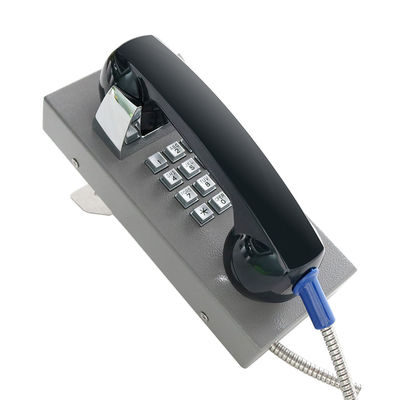

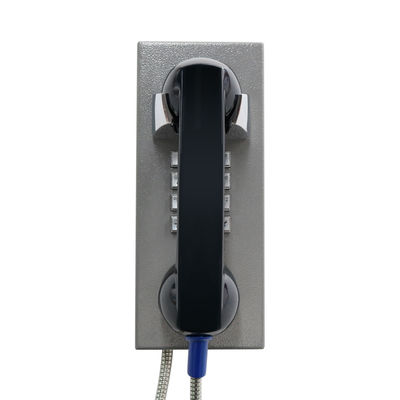

Wall Mounting SIP Anti-Vandal Handset Emergency Telephone Waterproof Bank Phone





JR202-FK Vandal Resistant Handset Telephone ihas the characteristics of simple installation, easy handle, stable operation and strong compatibility. Phone accessories and phone shell color can be customized.



The telephone adopts stainless steel panel with strong vandal proof feature. The handset, keypad, circuit board and other accessories are made of multi-layer waterproof and dustproof materials.









 Casing Material Robust Cold-rolled steel body (CRS)
 Colors

Color Optional,Gray as standard

 Handset Material ABS material handset with stainless steel spiral cord
 Keypad

Weather sealed tactile digital keypad.

Chrome key and frame made of zinc alloy.

Vandal resistance.

 Temperature

Operating: -30°C to +65°C

Storing: -40°C to +75°C

 Weather Resistance IP65
 Ringing Tone Shrill warble tone 85 dBA at 1 metre typical
 Hook switch Electronic / magnetic with no visible moving parts
 M.T.B.F. Calculated to have an M.T.B.F. in excess of 50,000 hours using
 Weight Up to 4 kg depending on option













Technical Specification

Wall Mounting SIP Anti-Vandal Handset Emergency Telephone Waterproof Bank Phone



































Heavy Duty, Vandal Resistant Metal Telephones

Téléphone d'urgence de combiné de vandale de PETITE GORGÉE de SRI anti fixé au mur 2



Analogue Version
  Power Supply From the analogue telephone network
  Supply Voltage 24 VDC to 65 VDC
  Supply Current 20 mA DC to 100 mA DC
  Ringer Volume - 80dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)
  Dialing Method DTMF mode in accordance with ITU-T recommendation Q.23.



SIP Version
  Power Supply PoE or 12V DC
  Power Consumption -Idle:1.5W
-Active:1.8W
  SIP Protocol SIP 2.0 (RFC3261)
  Support Codec G.711 A/U, G.722 8000/16000, G.723, G.729
  Communication Type Full duplex
  Ringer Volume - 90~95dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)



Ambient conditions
  Protection Type IP 66 as per EN60529
  Operating Temperature -30°C to +70°C
  Storage Temperature -40°C to +75°C









Applications

Wall Mounting SIP Anti-Vandal Handset Emergency Telephone Waterproof Bank Phone





JR202-FK PSTN Wholesale Telephone With Keypad is suitable for tunnel, railway, underground mine, prison, guard room, bank and many other areas.



Téléphone d'urgence de combiné de vandale de PETITE GORGÉE de SRI anti fixé au mur 3







Packing & Delivery

Wall Mounting SIP Anti-Vandal Handset Emergency Telephone Waterproof Bank Phone




Téléphone d'urgence de combiné de vandale de PETITE GORGÉE de SRI anti fixé au mur 4



 Unit Size 240 *100 *106 (mm)
 Carton Size 340 *235 *165 (mm)
 Packaging Materials Pearl cotton, carton
 Net Weight 2.7 KG
 Gross Weight 3 KG



Heavy Duty, Vandal Resistant Metal Telephones



Port Shenzhen, Guangdong
Lead Time
(If you finish the payment today, your order will ship out within the delivery date.)
Quantity(Sets) 1 2-500 >500
Est. Time(Days) 2 25 To be negotiated













Customised Accessories

Wall Mounting SIP Anti-Vandal Handset Emergency Telephone Waterproof Bank Phone







Heavy Duty, Vandal Resistant Metal Telephones



J&R provide LOGO printing and accessories customization services.

We will also provide suitable solutions according to the needs of customers.



HOOK FUNCTION: Magnetic hooks for choice

KEYBOARD SHAPE: Round buttons and square buttons for choice

INDICATOR LAMP COLOR: Red, yellow, blue, green for choice

MOTHERBOARD MODEL: 2G/3G/4G/SIP/GSM for choice

HADSET CORD: Black curly handset cord or stainless steel spiral cord

If you have any custom requirements, please feel free to contact us.







Our Company

Wall Mounting SIP Anti-Vandal Handset Emergency Telephone Waterproof Bank Phone




Heavy Duty, Vandal Resistant Metal Telephones



J&R Technology has long-term cooperated with many well-known international companies to steadily promote product development and innovation. The telephones like industrial telephones, weatherproof telephones and explosion-proof telephones and many other products are adopted by large mines, municipal projects and outdoor scenic spots.
