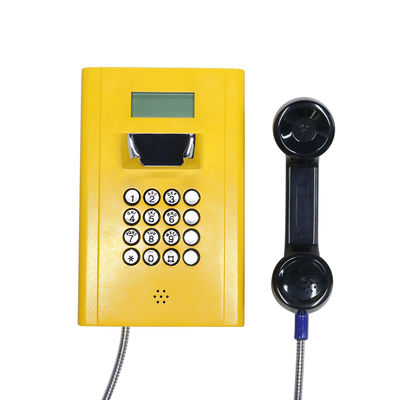

Téléphone résistant de vandale de GSM 1.5W de PETITE GORGÉE pour l'hôpital de banque

Informations de base
Lieu d'origine: Shenzhen, Chine
Nom de marque: J&R
Certification: CE, FCC, RoHS, ISO9001
Numéro de modèle: JR204-FK-LCD
Quantité de commande min: 1 morceau
Prix: US$165 - US$249
Détails d'emballage: Coton de perle, carton
Délai de livraison: 3-5 jours ouvrables après paiement
Conditions de paiement: Western Union, L/C, T/T, paypal
Capacité d'approvisionnement: 3000 ensembles par mois
Détail Infomation
Matériel: Acier laminé à froid Garantie: 2 ans
Protection contre les intempéries: IP55-IP65 Combiné: Matériel d'ABS avec la corde blindée
Version: Analogue/SIP/GSM Actionné: Ligne téléphonique actionnée ou DC12V/POE actionné
Clavier numérique: Pleins rocailleux et durable Application: Prisons, prison, parkings, hôpitaux, stations de garde, commissariats de police, halls de banque, ma
Couleur: Rouge, jaune, gris, bleu Affichage à cristaux liquides: oui
Volume de sonnerie: - 110dB (A) à une distance de 1 m (pour le haut-parleur externe de klaxon) Puce principale: Audiocodec
Nom de produit: Téléphone sans fil à l'épreuve du vandalisme de prison de Cleanroom de secours pour l'hôpital
Surligner:

Téléphone résistant de vandale de GSM

,

téléphone résistant du vandale 1.5W

,

Téléphone analogue imperméable de PETITE GORGÉE


Description de produit





Product Description



JR204-FK Weatherproof Telephone, Vandal

Resistant Telephone for Bank,hospital,school







 Casing Material Cold rolled steel body
 Colors RED, YELLOW, GREY
 Handset Material ABS material handset with stainless
steel spiral cord
 Keypad

Weather sealed tactile digital keypad.

Chrome key and frame made of zinc alloy.

Vandal resistance.

 Temperature

Operating: -30°C to +65°C

Storing: -40°C to +75°C

 Weather Resistance IP54 - IP65
 Ringing Tone Shrill warble tone 80 dBA at 1 metre typical
 Hook switch Electronic / magnetic with no visible
moving parts
 M.T.B.F. Calculated to have an M.T.B.F. in excess of 50,000 hours using
 Weight Up to 3 kg depending on option



Heavy Duty, Vandal Resistant Metal Telephones











Technical Specification



Weatherproof Telephone, Vandal Resistant Telephone for Bank,hospital,school



Heavy Duty, Vandal Resistant Metal Telephones



Téléphone résistant de vandale de GSM 1.5W de PETITE GORGÉE pour l'hôpital de banque 2



Analogue Version
 Power Supply From the analogue telephone network
 Supply Voltage 24 VDC to 65 VDC
 Supply Current 20 mA DC to 100 mA DC
 Ringer Volume - 80dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)
 Dialing Method DTMF mode in accordance with ITU-T recommendation Q.23.



SIP Version
 Power Supply PoE or 12V DC
 Power Consumption -Idle:1.5W
-Active:1.8W
 SIP Protocol SIP 2.0 (RFC3261)
 Support Codec G.711 A/U, G.722 8000/16000, G.723, G.729
 Communication Type Full duplex
 Ringer Volume - 90~95dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)



Ambient conditions
 Protection Type IP 66 as per EN60529
 Operating Temperature -30°C to +65°C
 Storage Temperature -40°C to +75°C











Features



Weatherproof Telephone, Vandal Resistant Telephone for Bank,hospital,school



SUPERIOR QUALITY

Weather protection IP65

Weatherproof and corrosion resistant handset

CE, FCC, IOS9001, ROSH compliant

Vandal Resistant VoIP SIP Hot Line Panel Phone
Vandal Resistant VoIP SIP Hot Line Panel Phone

KEYPAD

Aromred modular keypad with mental

buttons and bezel that is water,

fire and shock resisitant.



Can be programmed remotely by tone

phone or locally via keypad.



Heavy Duty, Vandal Resistant Metal Telephones





Standard Analogue phone/SIP phone

Vandal resistant handset and armored cord

Robust housing, constructed of cold rolled steel with powder coat

Programmable for auto-dial

Weather proof protection to IP54 - IP65

Wall mounting, Simple installation

External power supply or PoE (SIP-VoIP)

Connection type RJ45

CE,FCC,ROSH compliant



Vandal Resistant VoIP SIP Hot Line Panel Phone
Vandal Resistant VoIP SIP Hot Line Panel Phone
Vandal Resistant VoIP SIP Hot Line Panel Phone













Applications



Weatherproof Telephone, Vandal Resistant Telephone for Bank,hospital,school



JR204-FK Vandal Resistant Armored Speakerphone is ideal for parking lots, prisons, jail, railway/metro platforms, hospitals, police stations, airport,  bank, ATM machines, stadiums, outside building, etc.

The rugged shell of the telephone ensures effectively rescue and communication in public areas.



                      ▼J&R Airport Lobby project in Kuwait                         J&R jail project in Albania



Heavy Duty, Vandal Resistant Metal Telephones
Heavy Duty, Vandal Resistant Metal Telephones
Heavy Duty, Vandal Resistant Metal Telephones
Heavy Duty, Vandal Resistant Metal Telephones



J&R Vandal resistant phone project in Ireland prison











Packing & Delivery



Weatherproof Telephone, Vandal Resistant Telephone for Bank,hospital,school



Heavy Duty, Vandal Resistant Metal Telephones



 Unit Size 250 *160 *123 (mm)
 Carton Size 340 *235 *165 (mm)
 Packaging Materials Pearl cotton, carton
 Net Weight 3.5 KG
 Gross Weight 4 KG



Heavy Duty, Vandal Resistant Metal Telephones



Port Shenzhen, Guangdong
Lead Time
(If you finish the payment today, your order will ship out within the delivery date.)
Quantity(Sets) 1 2-500 >500
Est. Time(Days) 2 25 To be negotiated











Our Services



Weatherproof Telephone, Vandal Resistant Telephone for Bank,hospital,school



Heavy Duty, Vandal Resistant Metal Telephones



ODM & OEM products or solutions



Sample order is greatly welcomed



We will reply your inquiry within 12 hours



Update the productive process and show the packing details



After delivered the goods, we will track the products for you once every two days, until you get the products.



When you got the products, if there is any further questions, welcome to contact us and we will solve the problems for you in time.



 J&R telephone is guaranteed for two years.











Our Company



Weatherproof Telephone, Vandal Resistant Telephone for Bank,hospital,school



Heavy Duty, Vandal Resistant Metal Telephones



J&R is China based design and manufacturer of rugged communications equipment. J&R Technology always adhere to the safety first and people-oriented aims of special telephone R&D. We provide a variety of telephone customization services and telephone system solutions to meet our customers’ needs.

(All Of Our Phone Model Avaliable For Analogue Version,IP/SIP Version,GSM/3G/4G Version)
After well study your information,we sincerely hope to enter into partnership with your esteemed company and we hope to serve you and cooperate with you for all of our product range in your market.
We could offer you all of our product range with ODM&OEM solution to meet your demands and requirement well.

If you’re interested in our product, welcome to inquiry. To get more details about our telephone, please feel free to e-mail us. We will try our best to meet your needs.











FAQ



Weatherproof Telephone, Vandal Resistant Telephone for Bank,hospital,school



Q: Do you have any MOQ limit?

A: Low MOQ, 1pc is available



Q: Can I have a sample order ?
A: Yes, we welcome sample order to test and check quality.Mixed samples are acceptable.



Q: What about the lead time?
A: Normally within 2-5 working days. We have materials in stock for most of hot selling products.And mass production time needs 2-4 weeks for order quantity more than 100 units.



Q: What’s the quality standard of your products?

A: CE, FCC, RoHS, ISO9001:2015 certification approved. All materials are in high grade and new. With the strict quality,every phone be thoroughly tested before leaving the factory.



Q: Is it OK to print my logo on the products?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.



Q: Can you produce a product in a color of my choosing?

A: Yes, we can manufacture products in different colors, however there may be minimum quantities or surcharges applicable.



Q: Do you provide an installation service?

A: No, we do not install products, but they are very straightforward to install, please kindly contact us if unsure.



Q: When can I receive your quotation?

A: Within 12 hours



Q: How can I pay you?

A: Many convenient methods for choose: Paypal, T/T, L/C.
